Complete portfolio covering area‑light illumination for all standard machine vision applications.
Product Overview
Light Sources & Light Source Controllers
Standar Light Sources:
Selection Guidelines:
- Ring lights – choose by illumination angle: high‑angle for contour, low‑angle for surface texture.
- Coaxial lights – standard for general use, parallel for high precision, 45° for micro‑defects.
- Area lights – bottom‑emitting for high brightness, side‑light‑guide for ultra‑thin form factor.
- Wavelength – UV for fluorescence/transparent scratches, IR for silicon or dark‑plastic penetration.
- Customization – colors (R/G/B/W/IR/UV) and mechanical dimensions available on request.

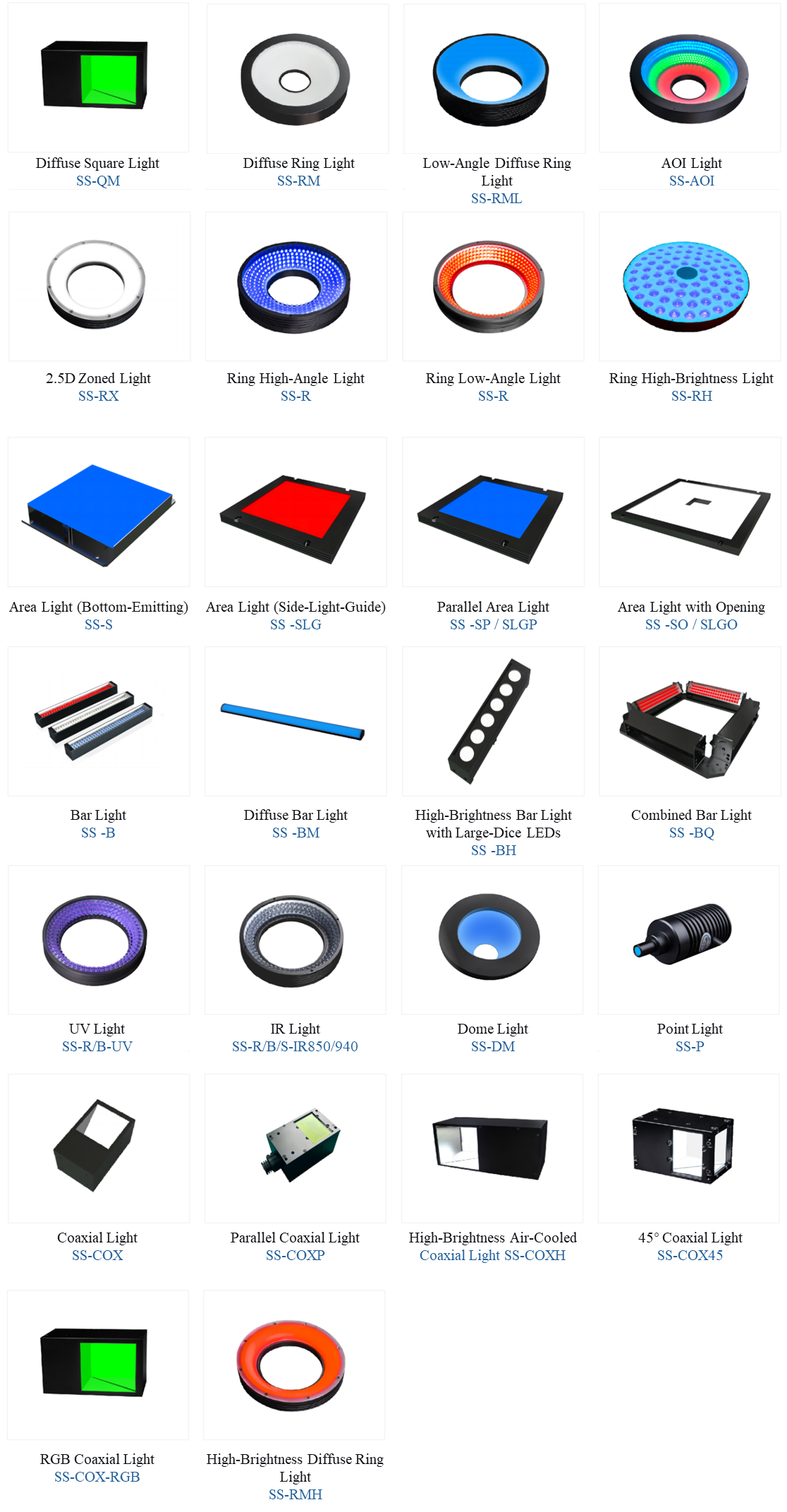

Series |
Model |
Key Features |
|
High‑Angle Ring Light |
SS‑R |
High‑angle incidence, highlights surface contours |
|
Low‑Angle Ring Light |
SS‑R |
Low‑angle incidence, emphasizes surface texture and defects |
|
High‑Brightness Ring Light |
SS‑RH |
High output for high‑speed imaging |
|
High‑Brightness Diffuse Ring Light |
SS‑RMH |
Diffuse + high‑brightness, combines softness with intensity |
|
Diffuse Ring Light |
SS‑RM |
Uniform diffuse illumination, eliminates glare |
|
Low‑Angle Diffuse Ring Light |
SS‑RML |
Low‑angle + diffuse, reveals fine scratches and topography |
|
Diffuse Square Light |
SS‑QM |
Square uniform area light for rectangular FOV |
|
Bar Light |
SS‑B |
Standard bar illumination |
|
Diffuse Bar Light |
SS‑BM |
Bar + diffuser, soft and uniform |
|
High‑Brightness Bar Light (Large‑Dice) |
SS‑BH |
Large‑die LEDs for ultra‑high intensity |
|
Combined Bar Light |
SS‑BQ |
Multi‑unit combinable, flexible shaping |
|
Area Light (Bottom‑Emitting) |
SS‑S |
Direct‑lit, high‑brightness uniform area |
|
Area Light (Side‑Light‑Guide) |
SS‑SLG |
Edge‑lit light guide, ultra‑thin design |
|
Parallel Area Light |
SS‑SP / SLGP |
Near‑collimated output for high‑accuracy profile measurement |
|
Area Light with Opening |
SS‑SO / SLGO |
Center opening for through‑lens mounting |
|
Dome Light |
SS‑DM |
Hemispherical inner wall, shadow‑free uniform illumination |
|
Point Light |
SS‑P |
Small‑spot high intensity, localised supplemental lighting |
|
Coaxial Light |
SS‑COX |
On‑axis illumination, eliminates shadows |
|
Parallel Coaxial Light |
SS‑COXP |
Collimated coaxial, sharper imaging |
|
High‑Brightness Air‑Cooled Coaxial Light |
SS‑COXH |
Fan‑cooled for sustained high output |
|
45° Coaxial Light |
SS‑COX45 |
45° incidence for fine scratches and indentations |
|
RGB Coaxial Light |
SS‑COX‑RGB |
Integrated R/G/B for multi‑spectral inspection |
|
UV Light |
SS‑R/B‑UV |
365/395 nm, for fluorescence and transparent‑surface defects |
|
IR Light |
SS‑R/B/S‑IR850/940 |
850/940 nm, for penetrating silicon wafers and dark plastics |
|
AOI Light |
SS‑AOI |
Optimised for automated optical inspection, multi‑angle illumination |
|
2.5D Zoned Light |
SS‑RX |
Independently controlled zones for 2.5D defect detection |
Light Source Controllers:
Selection Guidelines:
- Digital vs. Analog – Digital: RS232 communication, 256‑step precision. Analog: manual via potentiometer or external voltage, fast response, cost‑effective.
- Constant‑voltage vs. Constant‑current – Constant‑voltage for lights with built‑in current regulation; constant‑current for direct LED drive, more stable intensity, ideal for high‑power applications.
- Brightness‑Boost (SS‑ACDH) – supports short‑duration high‑intensity strobing synchronized with camera exposure for high‑speed imaging.
- All models feature over‑current, over‑voltage, and short‑circuit protection; aluminum housing with forced‑air cooling, rated for continuous industrial use.
|

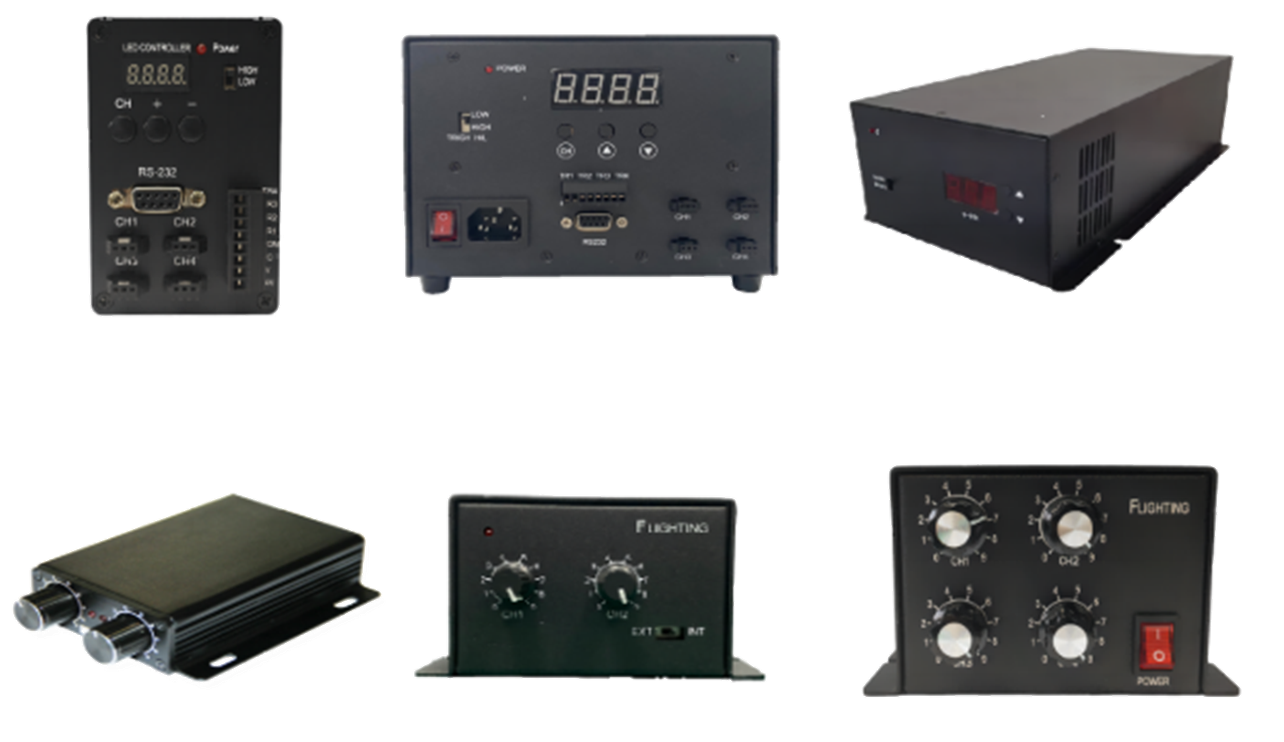

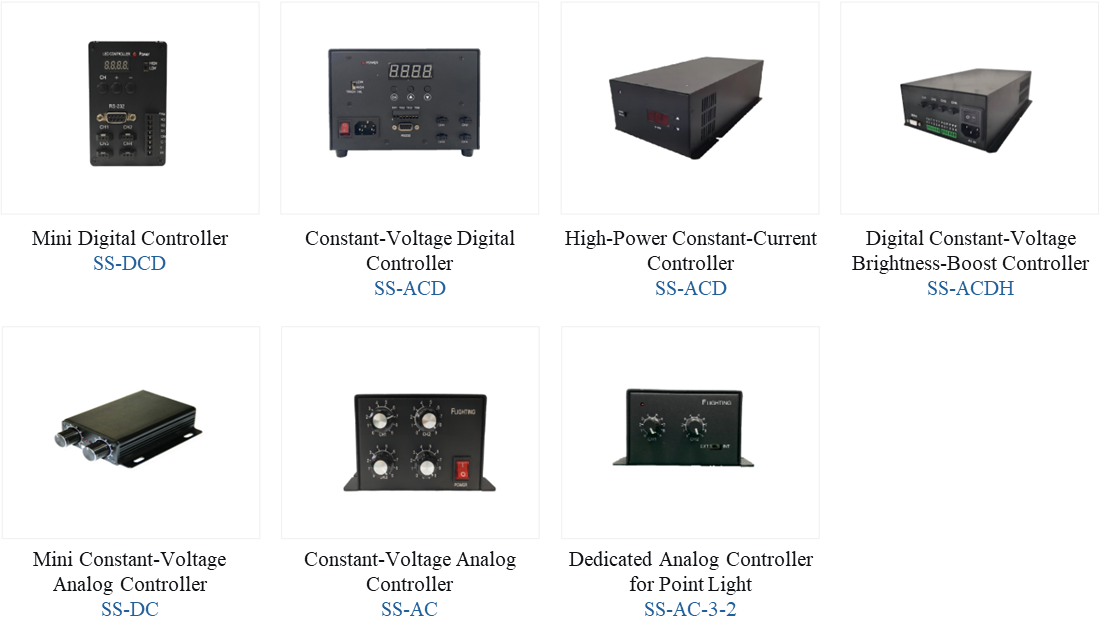

Model |
Type |
Key Specifications |
Application |
|
SS‑DCD |
Mini Digital Controller |
PWM dimming, 256‑step, RS232 |
Compact space, digital control |
|
SS‑ACD |
Constant‑Voltage Digital Controller |
Constant‑voltage output, RS232, keypad |
Standard digital dimming |
|
SS‑ACD |
High‑Power Constant‑Current Controller |
Constant‑current output, 5A/8A/12A |
Driving high‑power light sources |
|
SS‑ACDH |
Digital Constant‑Voltage Brightness‑Boost Controller |
Constant‑voltage + strobe boost |
High‑speed fly‑by imaging, strobing |
|
SS‑DC |
Mini Constant‑Voltage Analog Controller |
Analog dimming, potentiometer |
Compact space, manual control |
|
SS‑AC |
Constant‑Voltage Analog Controller |
Analog dimming, 0‑10V / 4‑20mA |
Standard analog control |
|
SS‑AC‑3‑2 |
Dedicated Analog Controller for Point Light |
3‑channel, 2‑output |
Point‑light specific |
Catalog Download
Download complete product documentation to understand the technical details and application solutions of Light Sources & Light Source Controllers
Light Source, Controller
Need more technical support?
Our technical team is always ready to provide product consulting, solution design, on‑site demonstrations, and after‑sales support
