Product Details
Fixed Mount Barcode Reader SRS-60 Series
Cost‑effective 3C‑oriented reader with one‑click tuning. Reads tiny & reflective codes. Compact form factor, Ethernet/Serial/USB options for factory automation
Key Specifications
Model OptionsRS60‑E(Ethernet), RS60‑S(Serial), RS60‑U(USB)
Image Sensor1280×960 Global Shutter CMOS, 120 FPS
Minimum Code Size1mm 1D/2D codes; fixed‑focus design
Interfaces & Protocols100Mbps Ethernet / RS232 / USB; Profinet, EIP, Modbus TCP
Protection & TempIP42, Operating: ‑10°C ~ 45°C, 24V DC power
Overview
Product Overview
Fixed Mount Barcode Reader SRS-60 Series
One‑Click Tuning
- The one‑click tuning adaptive algorithm is specifically optimized for 3C scenarios.
- External physical button enables one‑click tuning, quickly decoding difficult codes for 3C semi‑automatic workstations.

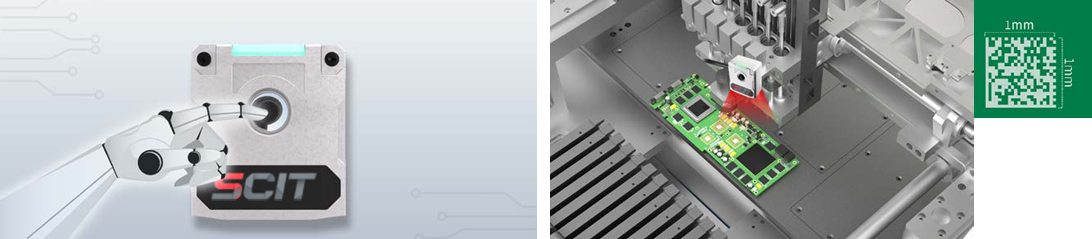

- Optimized lens and robust algorithms enable RS60 to decode 1mm small 1D/2D barcodes on electronics.

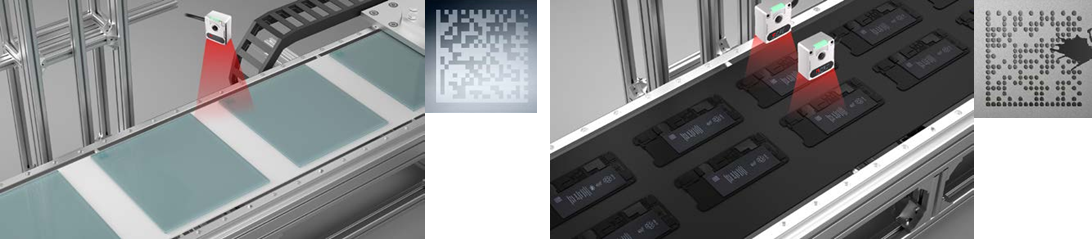

- Polarized‑light design for stable reading of low‑contrast, reflective Data Matrix codes on glass covers.
- Powered by S‑Cube Machine Vision Algorithm Engine, RS60 stably reads damaged barcodes for electronics assembly.
More Features, One‑Click Done
Adaptive Algorithm | Auto Parameter Tuning | Auto Symbology Detection
Native Straight-Out Cable Design
Applications:
Ultra-High Cost-Performance with Excellent 3C Reading Capabilities
- The most competitive pricing in its class, significantly reducing system integration costs.
Downloads
Catalog Download
Download complete product documentation to understand the technical details and application solutions of Fixed Mount Barcode Reader SRS-60 Series
Industrial Barcode Reader SRS-60
