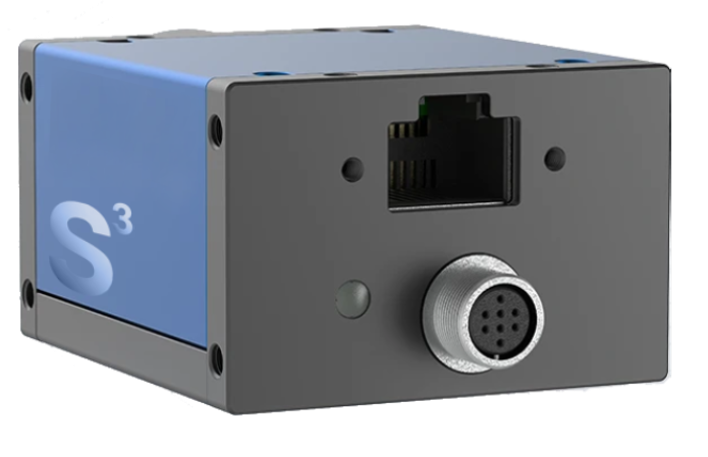

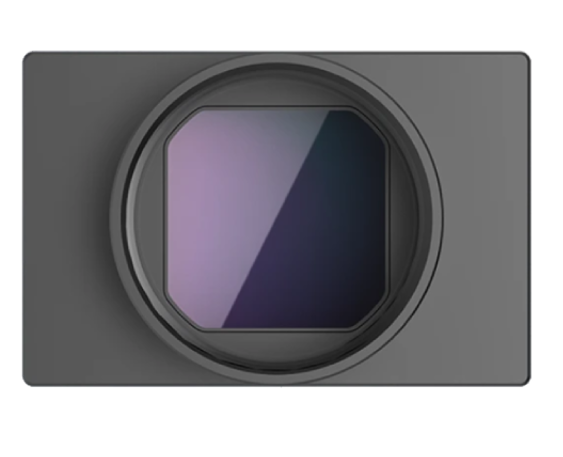

2D Industrial Area Scan Camera (SSC-2500M)

SSC‑2500M is a 25MP monochrome global‑shutter industrial camera adopting 2.5Gbps Ethernet, delivering 12 fps, 1 Gbit frame buffer and rich ISP functions for high‑speed high‑resolution machine‑vision inspection.

Download Catalog Request Quote

Key Specifications

High‑performance Global‑shutter Imaging- 1.1‑inch CMOS global‑shutter, **25MP (5120×5120)**, 2.5 μm pixel, 12 fps, 65 dB dynamic range, 38.1 dB SNR, delivers distortion‑free sharp images for high‑precision inspection. -

2.5G High‑speed Reliable Transmission2.5 Gbps Ethernet (IEEE 802.3bz), **1 Gbit on‑board frame buffer** with packet retransmission, prevents frame loss for stable real‑time data transfer.

Comprehensive On‑board ISP ProcessingOn‑board ISP: gamma, contrast, LUT, sharpness, noise reduction, flat‑field & dead‑pixel correction, reduces host CPU overhead for better real‑time performance.

Flexible Industrial Integration CapabilityHardware/software trigger & strobe output; opto‑coupled I/O + 2‑channel bidirectional I/O; **PoE / DC 12‑24 V**,＜4 W power consumption; compact **29×44×50 mm**, 108 g, standard mounting holes.

Wide Software Ecosystem CompatibilityGigE Vision V1.2 / GenICam compliant; compatible with Halcon, VisionPro, NI‑MAX, MVS; Windows & Linux supported for rapid machine‑vision deployment.

Overview

Product Overview

2D Industrial Area Scan Camera (SSC-2500M)

25MP, Mono
2.5G Ethernet transmission (compliant with IEEE 802.3bz 2.5GBase‑T standard, maximum speed 2.5 Gbps)
Compact dimensions: 29 mm × 44 mm × 50 mm, with industry‑standard mounting holes
Supports PoE power supply (compliant with IEEE 802.3af standard)
Built‑in large‑capacity frame buffer, combined with packet retransmission technology, ensures reliable and real‑time transmission
Supports GigE Vision and GenICam for seamless integration
Compatible with third‑party vision software such as HALCON and LabVIEW
Built‑in ISP supports gamma, contrast, and LUT, reducing host CPU load and improving real‑time performance
Supports DHCP, LLA, and auto‑adaptive network card mode; adaptive Jumbo Frame, plug‑and‑play
